An electrocardiogram (ECG) is a test that records the electrical activity of the heart.
How the Test is Performed
You will be asked to lie down. The health care provider will clean several areas on your arms, legs, and chest, and then will attach small patches called electrodes to those areas. It may be necessary to shave or clip some hair so the patches stick to the skin. The number of patches used may vary.

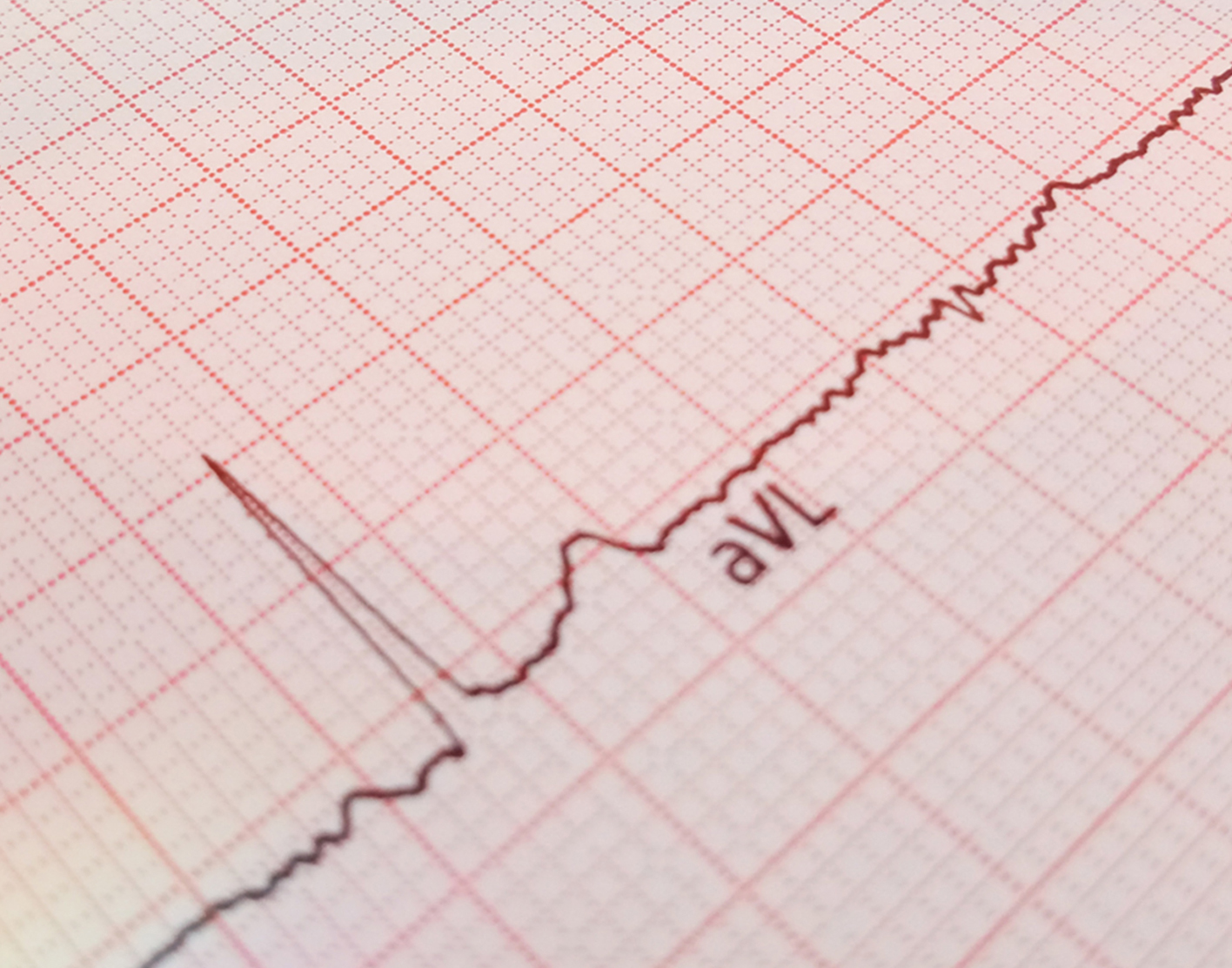

The patches are connected by wires to a machine that turns the heart's electrical signals into wavy lines, which are often printed on paper. The doctor reviews the test results.
You will need to remain still during the procedure. The provider may also ask you to hold your breath for a few seconds as the test is being done.
It is important to be relaxed and warm during an ECG recording because any movement, including shivering, can alter the results.
Sometimes this test is done while you are exercising or under light stress to look for changes in the heart. This type of ECG is often called a stress test.
How to Prepare for the Test
Make sure your provider knows about all the medicines you are taking. Some drugs can interfere with test results.
DO NOT exercise or drink cold water immediately before an ECG because these actions may cause false results.
How the Test will Feel
An ECG is painless. No electricity is sent through the body. The electrodes may feel cold when first applied. In rare cases, some people may develop a rash or irritation where the patches were placed.
Why the Test is Performed
An ECG is used to measure:
- Any damage to the heart
- How fast your heart is beating and whether it is beating normally
- The effects of drugs or devices used to control the heart (such as a pacemaker)
- The size and position of your heart chambers
An ECG is often the first test done to determine whether a person has
- You have
chest painor palpitations
- You are scheduled for surgery
- You have had heart problems in the past
- You have a strong history of heart disease in the family
Normal test results most often include:
- Heart rate: 60 to 100 beats per minute
- Heart rhythm: Consistent and even
What Abnormal Results Mean
Abnormal ECG results may be a sign of:
- Damage or changes to the heart muscle
- Changes in the amount of the electrolytes (such as potassium and calcium) in the blood
- Congenital heart defect
Enlargement of the heart
- Fluid or swelling in the sac around the heart
Inflammation of the heart(myocarditis)
- Past or current
- Poor blood supply to the heart arteries
- Abnormal heart rhythms (
Some heart problems that can lead to changes on an ECG test include:
- Heart attack
Heart failure Multifocal atrial tachycardia Paroxysmal supraventricular tachycardia Sick sinus syndrome Wolff-Parkinson-White syndrome
There are no risks.
The accuracy of the ECG depends on the condition being tested. A heart problem may not always show up on the ECG. Some heart conditions never produce any specific ECG changes.
Brady WJ, Harrigan RA, Chan TC. Basic electrocardiographic techniques. In: Roberts JR, Custalow CB, Thomsen TW, eds. Roberts and Hedges' Clinical Procedures in Emergency Medicine and Acute Care. 7th ed. Philadelphia, PA: Elsevier; 2019:chap 14.
Ganz L. Electrocardiography. In: Goldman L, Schafer AI, eds. Goldman-Cecil Medicine. 25th ed. Philadelphia, PA: Elsevier Saunders; 2016:chap 54.
Mirvis DM, Goldberger AL. Electrocardiography. In: Zipes DP, Libby P, Bonow RO, Mann DL, Tomaselli GF, Braunwald E, eds. Braunwald's Heart Disease: A Textbook of Cardiovascular Medicine. 11th ed. Philadelphia, PA: Elsevier; 2019:chap 12.
